FEATURES:
◆ All rapid, power feed and coolant controls are positioned on front of machine providing fast & simple operation.
◆ All gears and shafts to the main spindle drive are hardened & ground treatment.
◆ Rigid casting of column and base for long lasting sturdiness & precision.
◆ Longitudinal “Gear Power Feed” offers 6 steps for heavy duty cutting performance.
◆ The horizontal Milling machine serves as a vertical Milling machine by moving with Vertical Head attachment.
◆ Work Table can be swiveled in horizontal direction by 45º each right & left.
◆ The machine permits a flexible use in any kind of workshop.
◆ Ideal For:
-General machining workshops
-Mold making and repair shops
-Metalworking training centers
-Custom parts and prototype fabrication
STANDARD ACCESSORIES :
◆ Longitudinal Gear Box Feed
◆ Coolant System
◆ Electric Box With Control Panel
◆ Swivel Table *Vertical Head
◆ One Shot Lubrication System
◆ Work Light
◆ Drawbar
◆ Cutter Arbor (Ø27mm or Ø1”) & Sleeve

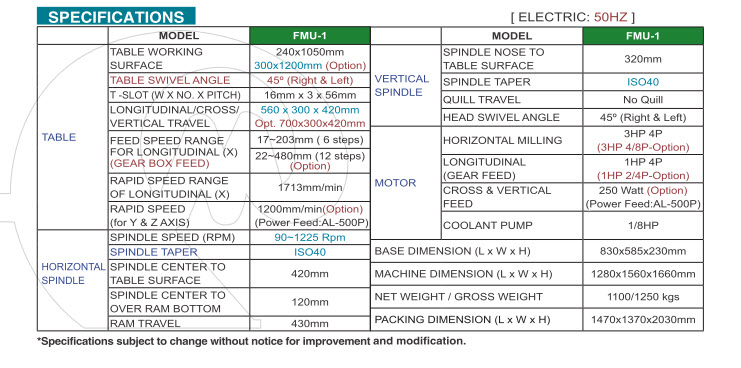

Specifications
1. Table
• Table Working Surface: 240 x 1050 mm (Option: 300 x 1200 mm)
• Table Swivel Angle: 45° (Right & Left)
• T-Slot (Width x Number x Pitch): 16 mm x 3 x 56 mm
• Travel (Longitudinal / Cross / Vertical): 560 x 300 x 420 mm (Option: 700 x 300 x 420 mm)
• Feed Speed Range for Longitudinal (X) - Gear Box Feed: 17 ~ 203 mm (6 steps) (Option: 22 ~ 480 mm / 12 steps)
• Rapid Speed Range of Longitudinal (X): 1713 mm/min
• Rapid Speed (for Y & Z Axis): 1200 mm/min (Option) (Power Feed Model: AL-500P)
2. Spindle Systems
Horizontal Spindle
• Spindle Speed: 90 ~ 1225 Rpm
• Spindle Taper: ISO40
• Spindle Center to Table Surface Distance: 420 mm
• Spindle Center to Over Ram Bottom Distance: 120 mm
• Ram Travel: 430 mm
Vertical Spindle
• Spindle Nose to Table Surface Distance: 320 mm
• Spindle Taper: ISO40
• Quill Travel: No Quill
• Head Swivel Angle: 45° (Right & Left)
3. Motor & Power
• Horizontal Milling Motor: 3HP 4P (Option: 3HP 4/8P)
• Longitudinal Gear Feed Motor: 1HP 4P (Option: 1HP 2/4P)
• Cross & Vertical Feed Motor: 250 Watt (Option) (Power Feed Model: AL-500P)
• Coolant Pump Motor: 1/8HP
